Silent 12 PWM 120 mm Fan

Case Fans

Silent 12 PWM 120 mm Fan

4.2 34 ratings

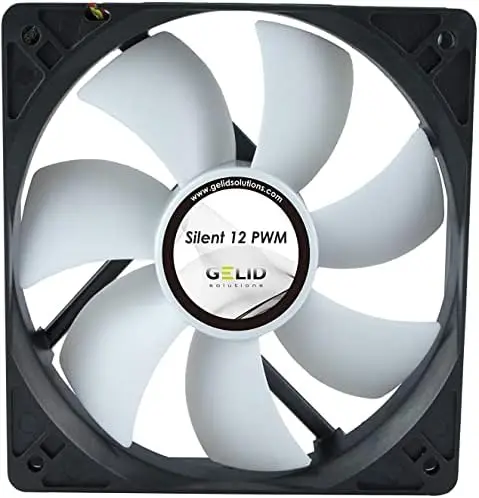

Silent 12 PWM: a 120 x 120 x 25 mm fan at 1500 rpm for 58 CFM and 25.5 dBA, four-pin, hydro bearing.

$14.99

In stock

Sold and shipped by an authorized retail partner. Price shown was current when this page was built.

Check price and buy
Model
FN-PX12-15
Category
Case Fans

One hundred and twenty millimeters is the default size in a modern case, and this is the four-pin version of it: 1500 rpm at the top of its range, 58 CFM of airflow, 25.5 dBA, and a hydro-dynamic bearing rated at 50,000 hours at 40 C. It is a general-purpose intake or exhaust fan rather than a specialist one.

  1. What four-pin control actually gives you

    A PWM fan is told how fast to run by a signal rather than by having its voltage reduced, which means it can be held very low without stalling and ramped smoothly under load. In practice that is the difference between a machine that is silent while idle and one that hums constantly at whatever speed the board settled on.

  2. Building a fan curve worth having

    Set the fan to its minimum until the component you care about reaches a temperature you would rather it did not exceed, then ramp steeply. Slow gradual curves keep the fan audible all day for no thermal benefit. What people notice is change in noise, not absolute level, so few large steps beat many small ones.

  3. Fifty-eight CFM in context

    That is a substantial volume for a 120 mm fan at this speed, and in most cases it means one or two of these will handle the whole airflow requirement of a normal build. Adding more fans past that point tends to raise the noise floor without lowering any temperature that mattered.

  4. Intake, exhaust and the balance between

    Slightly more intake than exhaust keeps a case at mild positive pressure, so air enters through the filters you fitted instead of through every seam in the chassis. That is a dust decision more than a thermal one, and it is the reason two identical machines can look very different inside after a year.
