GP-Ultimate 15W Thermal Pad, 90 x 50 x 2.0 mm
4.7 1,021 ratingscounted across all 5 thicknesses of this sheet size

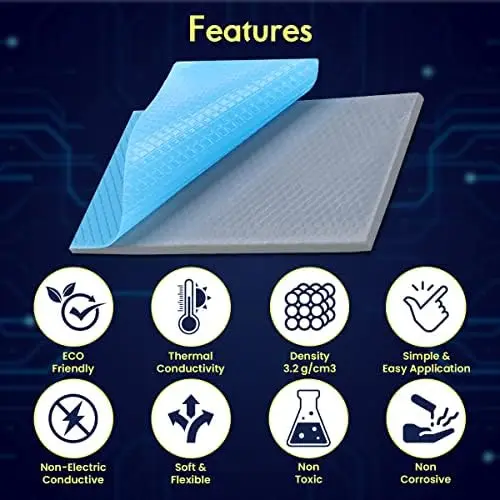

A 2.0 mm GP-Ultimate sheet, 90 x 50 mm at 15 W/mK, for backplates and secondary heatsinks with generous designed clearance.
$13.99
In stock
Sold and shipped by an authorized retail partner. Price shown was current when this page was built.
Check price and buy- Model
- 90x50x2.0
- Conductivity
- 15 W/mK
- Sheet size
- 90 × 50 mm
- Thickness
- 2 mm
- In the pack
- 1 sheet
- Series
- GP-Ultimate
- Color
- Blue
- Category
- Thermal Pads
Two millimeters is a gap built on purpose, usually by a designer who needed a plate to clear tall components while still cooling something shorter. At that depth the filler contributes a real share of the total resistance, which is the strongest argument in the range for choosing the 15 W/mK grade. The sheet measures 90 x 50 mm.
Depth is where conductivity earns its keep
Thermal resistance through a pad rises with thickness and falls with conductivity. At 0.5 mm the two grades are close. At 2 mm the gap between them widens, because there is four times as much material in the path for the better number to act on. If you are going to pay for a higher grade anywhere, pay for it here.
Backplates and the flex problem
A backplate is thin metal held at a few points, so it bends between fasteners. A soft 2 mm filler follows that bend and keeps contact across the whole span, while a rigid spacer would touch only where the plate happens to be flat. Compliance is a specification even when nobody prints it.
Cutting wide pieces from a 90 x 50 sheet
Backplate pads are usually rectangles rather than ribbons. Plan the largest rectangle first and take it from a corner, leaving an L-shaped remainder that is still large enough to be useful. Cutting from the middle of a sheet is the fastest way to turn one useful piece into two awkward ones.
Do not chase the gap with two pads
Reaching 2 mm with a 1 mm pad doubled over adds an interface in the middle of the path and two faces that will never mate perfectly. It measures worse than a single correct piece every time. Buy the height you need rather than assembling it.
Wrong thickness? Same sheet, other heights
| Thickness | Pack | Price | |
|---|---|---|---|
| 2 mm this page | 1 sheet | $13.99 | |
| 0.5 mm | 1 sheet | $10.99 | View |
| 0.5 mm | 2 sheets | $12.89 | View |
| 1 mm | 1 sheet | $13.99 | View |
| 1 mm | 2 sheets | $18.99 | View |
| 1.5 mm | 1 sheet | $12.99 | View |
| 1.5 mm | 2 sheets | $19.99 | View |
| 2 mm | 2 sheets | $21.99 | View |
| 3 mm | 1 sheet | $15.99 | View |
